The SS-30P DC Swithcing Power Supply is ready to take on powering multiple devices with 25A continuous and 30A peak. Each DC connection point is capable of handiling the full power output that the SS-30P can supply.
FEATURES
- Universal Input: 100-240VAC (50 or 60Hz)
- Illuminated On/Off Power Switch

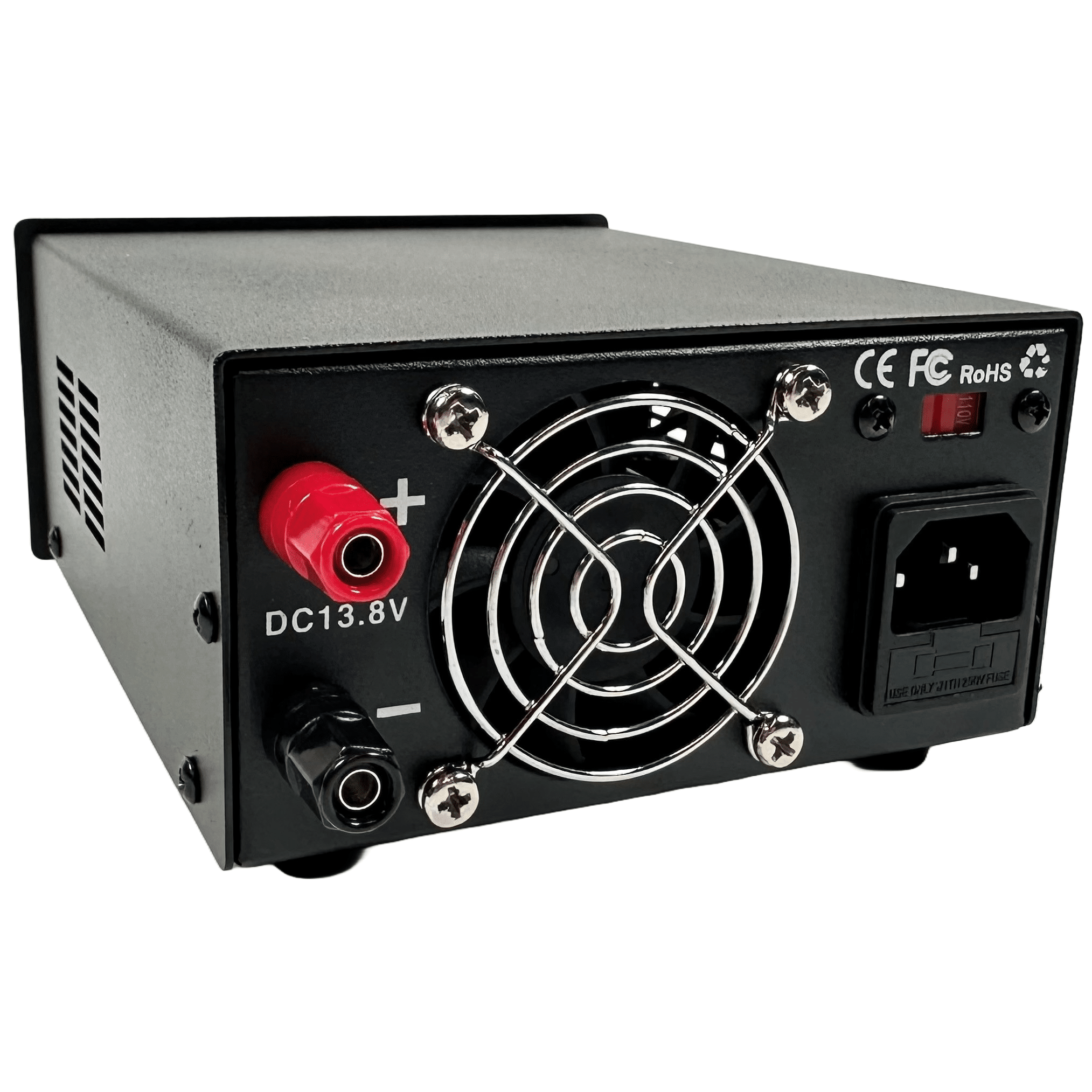

- Connection Points: Powerpoles (Front) – 0.25in Binding posts that also accept banana plugs (rear)
- Built in Protection: Fused Input, Over Current, Over Voltage, and Thermal Shutdown
- Oversized Cooling Fan (temperature regulated)
APPLICATIONS
- Two-Way Radios: Amateur Radio (VHF/UHF), Commercial & GMRS Radio.
- Communications Systems
- 12V DC Lighting Systems and Displays
- GPS and Fish Finder Displays
SPECIFICATIONS
- Input Voltage: 100-240VAC (50 or 60Hz)
- Output Voltage: 13.8VDC
- Output Current: 25A Continuous (30A Peak)
- Operating Temperature Range: -10 to 50°C
- Dimensions (L x W x H): 6.0 x 5.4 x 3.0 in
- Weight: 2.1 lbs
- Safety: FCC , CE
- Warranty: 2 Years
